DESCRIPTION LT82987-1ME

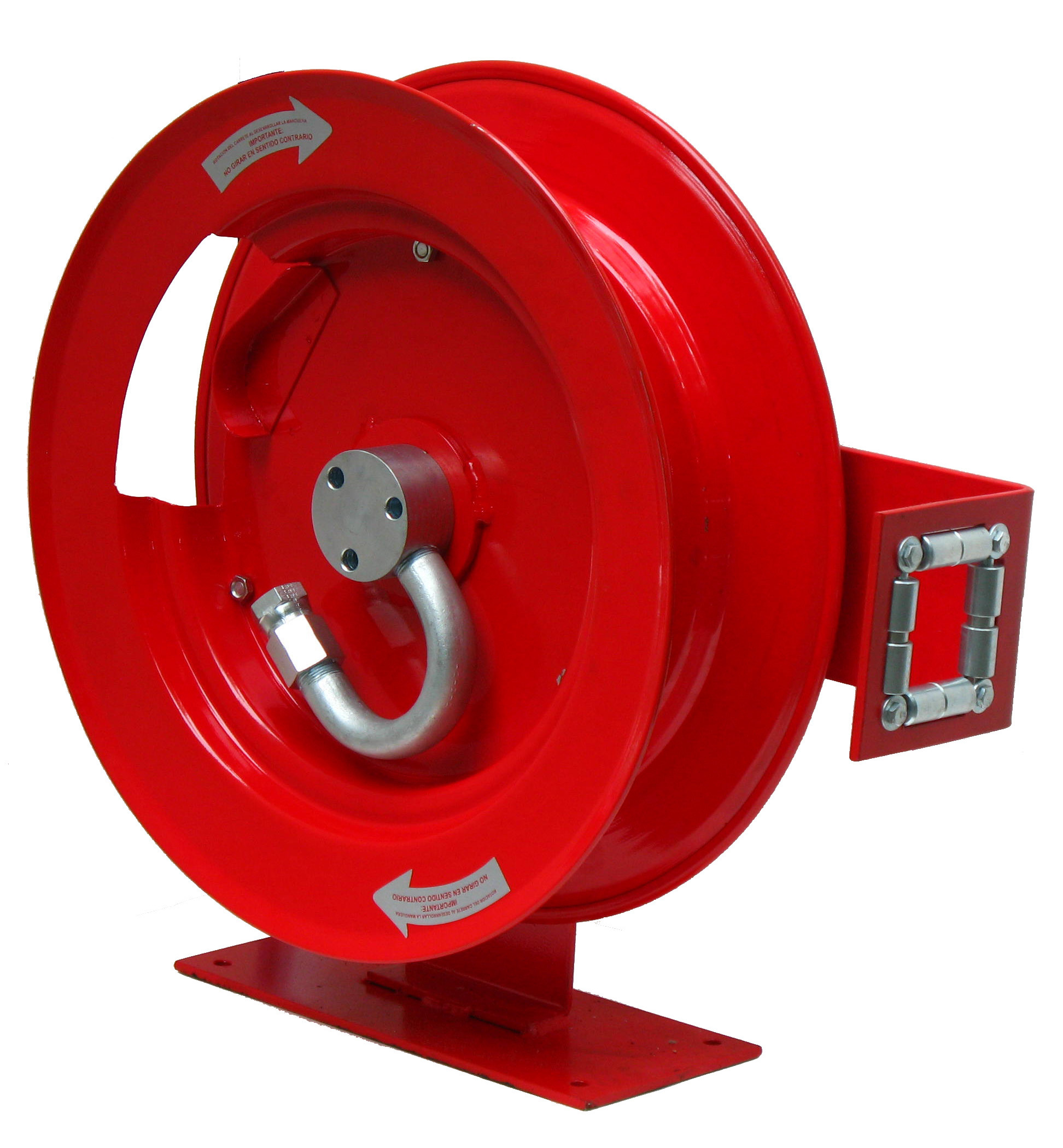

Heavy Duty High Flow FUEL Reel ONLY

1: Heavy Duty Reel Assembly; Spring powered reel;
2: 3/4" NPT (F) Inlet and Outlet
3: Order Connecting Hose Separately

4:Additional Information and Specifications:
5: Includes steel rollers and Heavy Steel Mounting Base.
6: Type: Medium Pressure: 2000 PSI

7: Inlet / Outlet: 3/4"(19MM)

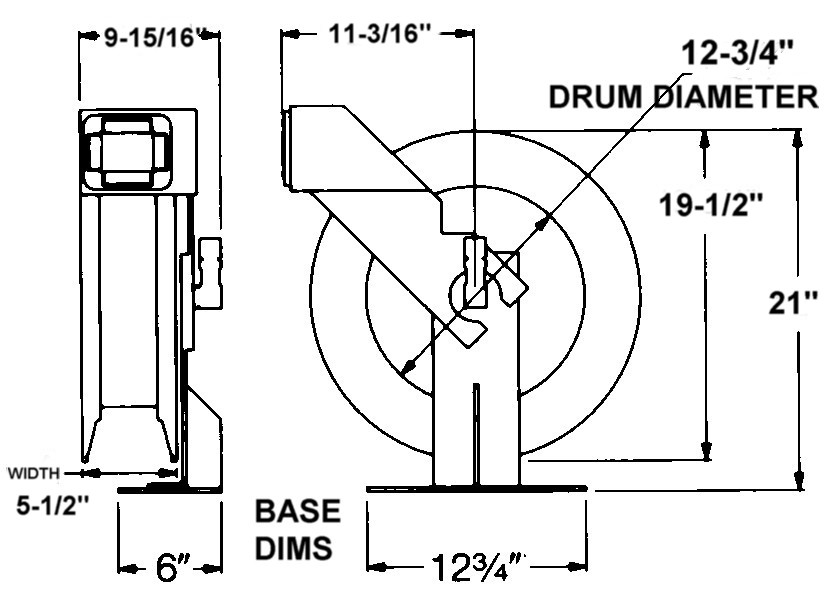

8: Sheath Width Outside to Outside: 5-1/2" (approx-13.97CM)
9: Sheath Width Inside to Inside: 4-7/8" (approx)(12.4CM)

10: Sheath Depth: 4-3/4"(12.1CM)
11: Diameter of Sheath: 19-1/2"(49.5CM)
12: Base: 12-3/4"(32.4CM) x 6"(15.24CM)

13: Base Thickness: 1/4" Plate Steel with 4 3/8"(11.1CM) DIA mounting holes for easy mounting of the base to any support column, rafter or floor
14: Length of Arm: 15"(38.1CM)
15: Solid Metal Rollers with a diameter of: 2-1/8"(5.4CM) x 2-1/8"(5.4CM)

16: Applications: Fuel, Diesel, Oil, ATF, Antifreeze, Water, Air
17: Carries Hose:
SAE100R3 73 50 FT(15.2mtrs)
SAE100R1 78 25 FT(15.2mtrs) 3/4"ID X 1-1/4" OD
SAE 100R3 74A 40 FT (12.2mtrs)
SAE100R6 74 50 FT(15.2mtrs)

18:BOX Weight: 80LBS
19: BOX DIMS: 24" x 24" x 16" (61cm x 61cm x 40.6cm)
20: Application: Installed Lube in Garage, Maintenance Facility, Quick Lube, Industrial, Factory, Mines, Mining Vehicle, Service Vehicle, Lube Truck

21: Price?????
22: Download PDF file.
