DESCRIPTION

LT84121ME

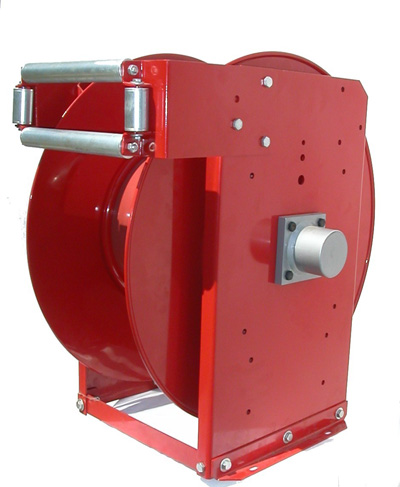

Super Duty High Flow Reel; Extra Large Hose Capacity

1: Designed for use with 50ft (15.2 mtrs) of 1-1/4" (3.175 cm) ID hose or smaller (maximum capacity)
2: Suitable for gasoline, diesel fuel, fuel oil, petroleum oil, water, transmission fluids, airfcraft fuels, and air.
3: For hazardous fluids, hose with static grounding wire must be used and furnished by user.
4: For aircraft fuels, a separate static grounding cable must be furnished by user.

5: Max. Operating pressure: 375 PSI;
6: Inlet and Outlet threads: 1-1/4" (3.175 cm) NPT female.
7: Includes No. 84122 ball stop; adjustable for use with 1-3/4" (4.45 cm) OD or 1-7/8" (4.76 cm) OD hose;
8: Reel Size: 26-1/2" (67.3 cm) high x 18-3/4" (47.6 cm) wide x 25-1/2" (64.8 cm) deep
9: Type of Hose: Low Pressure: 375 PSI; Inlet / Outlet: 1-1/4" (3.175cm)(F); Can accomodate smaller size hoses with fittings and adapters.

10: Sheath Width Outside to Outside: 10-1/4" (26.0 cm).
11: Sheath Width Inside to Inside: 10.0" (25.4 cm).
12: Sheath Depth: 6-27/32" (17.4 cm).
13: Diameter of Sheath: 24.0" (61 cm).

13: Base: 14-1/2" (36.8 cm) x 15" (38.1 cm).
14: Base Thickness:
15: Length of Arm: NA

16: Solid Metal Rollers with a diameter of: 10.0" (25.4 cm) x 2-3/4" (7.0 cm).
17: Product Applications: Oil, ATF, Hydraulic Oils, Antifreeze, Water, Air; Combustible, Fuel Oil, Diesel, Gas, Aircraft Fuels, Petroleum Oils, and Transmission Fluids.

18: Designed for use with Hose: SAE100R1 3/4"ID(1.91 cm) X 1-1/4" OD (3.175 cm) 50 FT (15.2 mtr)
19: Approximate Weight: with 50 ft (15.2 mtr) of hose and nozzle pressurized to 150 PSIG with SAE 10 weight Oil: 195 LBS (88.5 kgs).

20: BOX Weight: 80LBS (36.3 kgs)
21: BOX Dimensions: 24" x 24" x 16" (61cm x 61cm x 40.6cm)

22: Use Application: Installed Lube in Garage, Maintenance Facility, Quick Lube, Industrial, Factory, Mines, Mining Vehicle, Service Vehicle, Lube Truck

23: Can also accomodate the following hoses.
SAE100R3 73 50 FT(15.2mtrs)
SAE100R1 78 25 FT(15.2mtrs) 3/4"ID X 1-1/4" OD
SAE 100R3 74A 40 FT (12.2mtrs)
SAE100R6 74 50 FT(15.2mtrs)

24: It is the responsibilty of the user to determine proper grounding techniques when using this reel and flammable liquids

25: Price?

26: Download PDF File

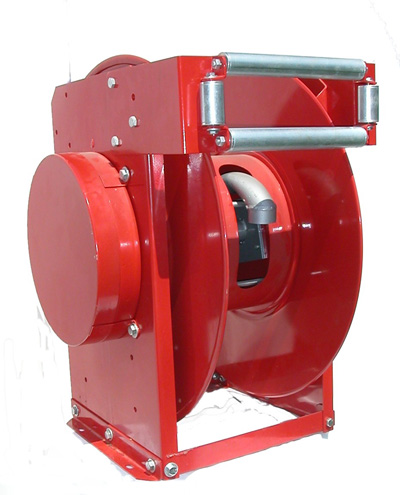

LT84121ME super duty high flow reel, second view

Description	Hose Capacity	Hose Type	Hose Length	Inlet	Outlet	Working Pressure	Sheave Width	Width	Depth
Super Duty High Flow Reel	1-1/4" (3.175CM) OD LOW PRESSURE	100R3	50 FT 15.2 mtrs	1-1/4" 3.175CM	1-1/4" 3.175CM	375 PSI	10" 25.4CM	18-3/4" 47.6CM	16-3/4" 42.5CM
