DESCRIPTION

LT82398MCO-10FT-775ME

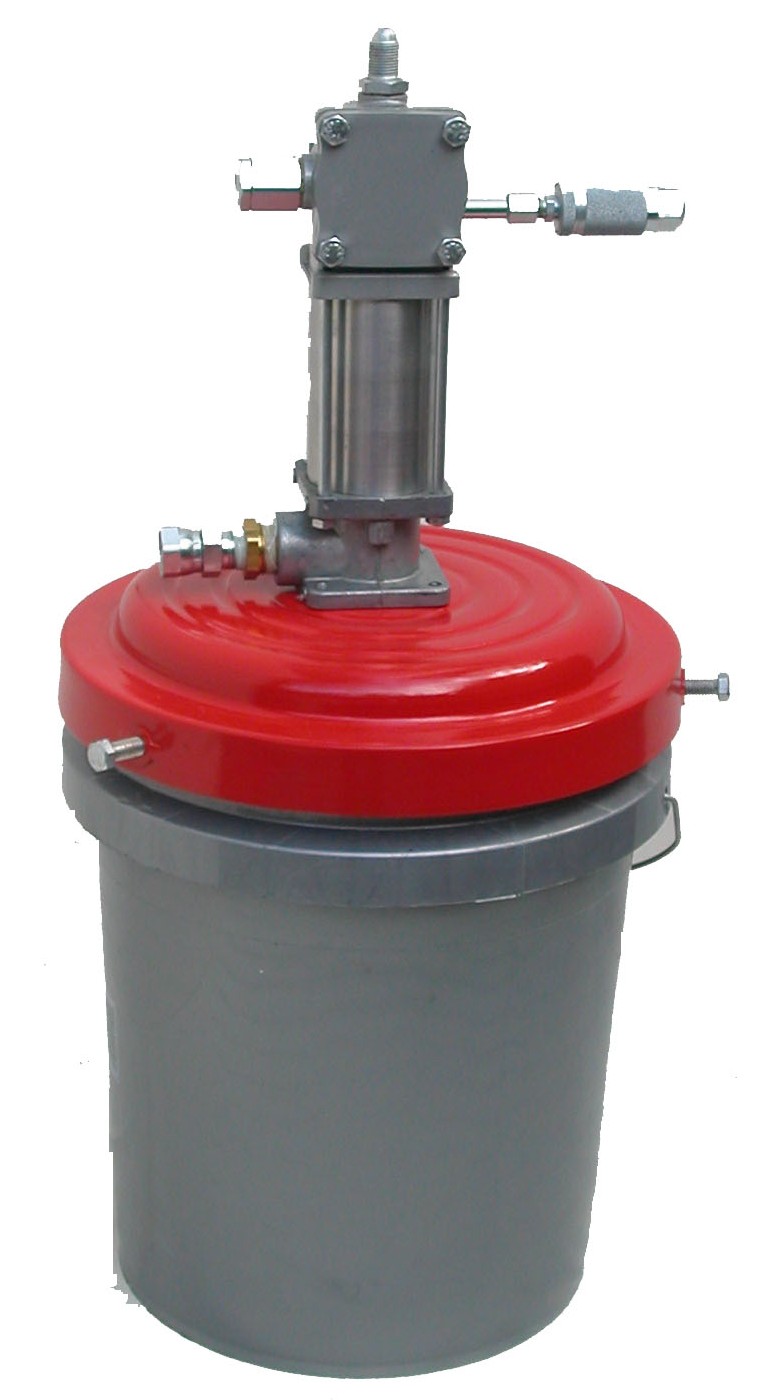

5 Gallon Pail Air Operated Pump Assembly with Cover

1. Includes 3:1 Double Acting Low Pressure Stub Pump(LT82398M)
2. Rapid Disconnect Coupler(815ME)
3. Air Nipple(11660ME) & Ext Tube (10181ME)
4. Muffler(LT2601ME)
5. 5 GAL 19 Liter Cover Painted in Red (45899ME); Clamps to a 5 Gallon Pail. 4 screws affix the cover to the base of the pump.

6: Air Hose: 1/4" x 3ft(.92mtr); Oil Hose 1/2" x 10ft (3.1mtr)
7: High Volume Control Valve: 775ME with Rigid Extension.
8.Air Motor Cover(91407ME)
9. Air Inlet: 1/8"NPT(f); Lubrication Outlet: 3/4"NPT(f)(1.90CM)
10. Pump Tube Diameter: 1-7/8"(4.76CM); Pump Tube Length 12-1/4"(31.1CM); Air Motor Height: 11.0"(27.94cm); Overall Height: 25-1/2"(64.8CM).

11. Output: 4 Gallons/minute (15.1LTRS/MIN)(Free Delivery)
12: Recommended Air Pressure is 80 to 100 PSI with Regulator.
13. Replacment Pump with cover made to fit a 5 Gallon (19 Liter) Pail.
14. One Year Warranty against Materials, Workmanship and Labor
15: Application: Pump oil from a 5 Gallon Pail (Container Not Included)

16. Additional Accessories Available:
LT780ME Gear Oil Control Valve 1/2" NPT(f); Includes:82067ME Shut-Off Valve with built-in Swivel and 82070ME Non-Drip Nozzle Extension. Maximum Operating Pressure 1000PSI.
LT775ME: HD Volume Oil Control Valve 1/2" NPT(f); Includes 82906ME Shut-Off Valve and 82932 Rigid Extension Nozzle; Maximum Operating Pressure 1000PSI.

17. Complete Repair Kits Available:
R83071ME: Simple Repair Kit for Oil Pumps LT82398M
R83000ME: Air Motor Repair Kit for LT82398M
18. Other Information: Weight and Dimensions: BOX Weight: 17LBS (7.71KG) BOX DIM: Length: 14"(35.6cm)XWidth:13"(33.0cm)XHeight: 26"(66.1cm)

19: Price.
20: Download LT82398MCO-10FT-775ME PDF file.
