WillmarLube TECHNOLOGY
| FLUID CONTROL VALVE | PAYPAL |  |
 |
We make it EASY for you to do business with Willmar Lube Technology |
|---|---|---|---|---|
| PRICE | AVAILABILITY | SELECTION | CONVENIENCE | Mail: Willmar Lube Technology |
| 4 ways to Order!! | Fax: 1-616-676-1287 | TEL: 1-616-676-1792 | Email:sales@willmarlube.com | P.O. Box 456, Ada, MI. 49301 |
| DESCRIPTION | LT779ME |

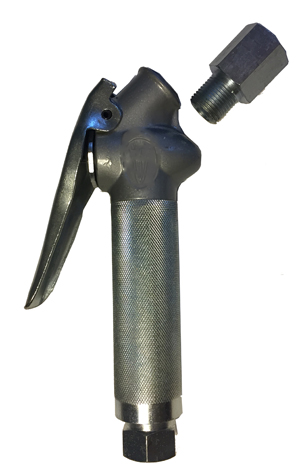

| Heavy Duty Volume Fluid / Oil Control
Valve (without extensions or nozzles) 1. HD Volume Fluid / Oil Control Valve 1/2" NPT(f) 2: Includes 82906ME Shut-Off Valve 3: Built-in Swivel in base of control valve handle. 4. Includes the adapter 12418ME (3/4"-16 NF (M) por 1/2" NPT (F)) for the control valve 779me 5. Comes ready to connect your own flexible hose or rigid extension with a (1/2" (m) NPT) thread. 6. The Rigid Extension and Nozzle Assembly are optional and need to be ordered separately. 7. Maximum Operating Pressure 1000PSI 8. One Year Warranty against Materials, Workmanship and Labor 9. Application: Installed Lube Systems & Lube Trucks; High Volume Delivery of Many Types of Oil to Crank Cases, Gear Boxes, Transmissions, Engines etc… Dispenses Automotive Fluids including motor oils, gear oils, hydraulic oil, ATF transmission fluid and antifreeze. 10. Control Valve Dimensions:: Length: 8-1/2"(21.6 cm) x Barrell Diameter: 1-1/2" (3.81cm) x Width w/ Handle: 3.0" (7.62 cm) 11. Other Information: Weight and Dimensions: BOX Weight: 3LBS(1.4KG) BOX DIMS: Length: 12"(30.5cm ) x Width: 6"(15.2cm) x Height: 4"(10.2cm) 9: Price 10: Download LT779ME PDF file. |
 |
Return to Lube Technology Equipment Menu
For Additional Information or Technical Information, send us an email from this web page at the address below. Please specify the Model Number. Please include your name, address, city, state, zip, Telephone Number and Fax Number in the email and we will send you the requested Information.
