|35LB (5 Gallon) (15.8KG) (Grease Drum
Cover w/ Height Adjuster
1: 35lb Grease Drum Cover w/ Knurl and Coupler (Height Adjuster) Assembly for use with 35LB Drum Pumps and LT82716ME Pump; Uses Knurl and Coupler Assembly 91144CP to attach pump to cover.
2: Dimensions of Cover:
Outside Cover Diameter: 12-5/8"(32.07CM);
DIA of Pump Opening in Cover 1-1/4"(3.175CM);
Inside Cover Diameter: 12-1/2"(31.75CM)
Cover Height: 2-5/8"(6.67CM)
3: 3 Set Screws on the Outer edge to adhere the cover and mounted pump to the drum
4: Fits a Standard 35LB (5Gallon) (15.8KG) Grease Drum

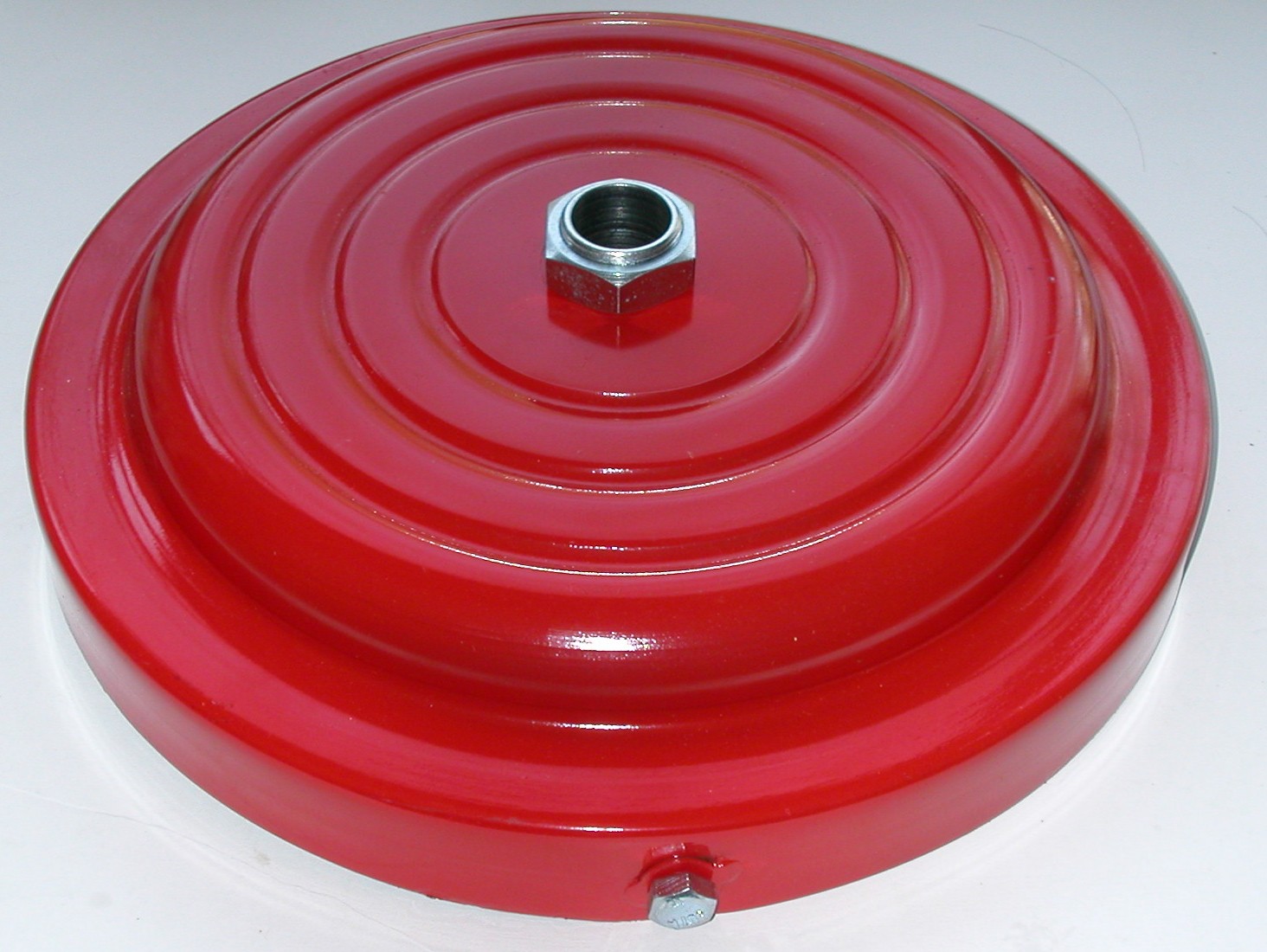

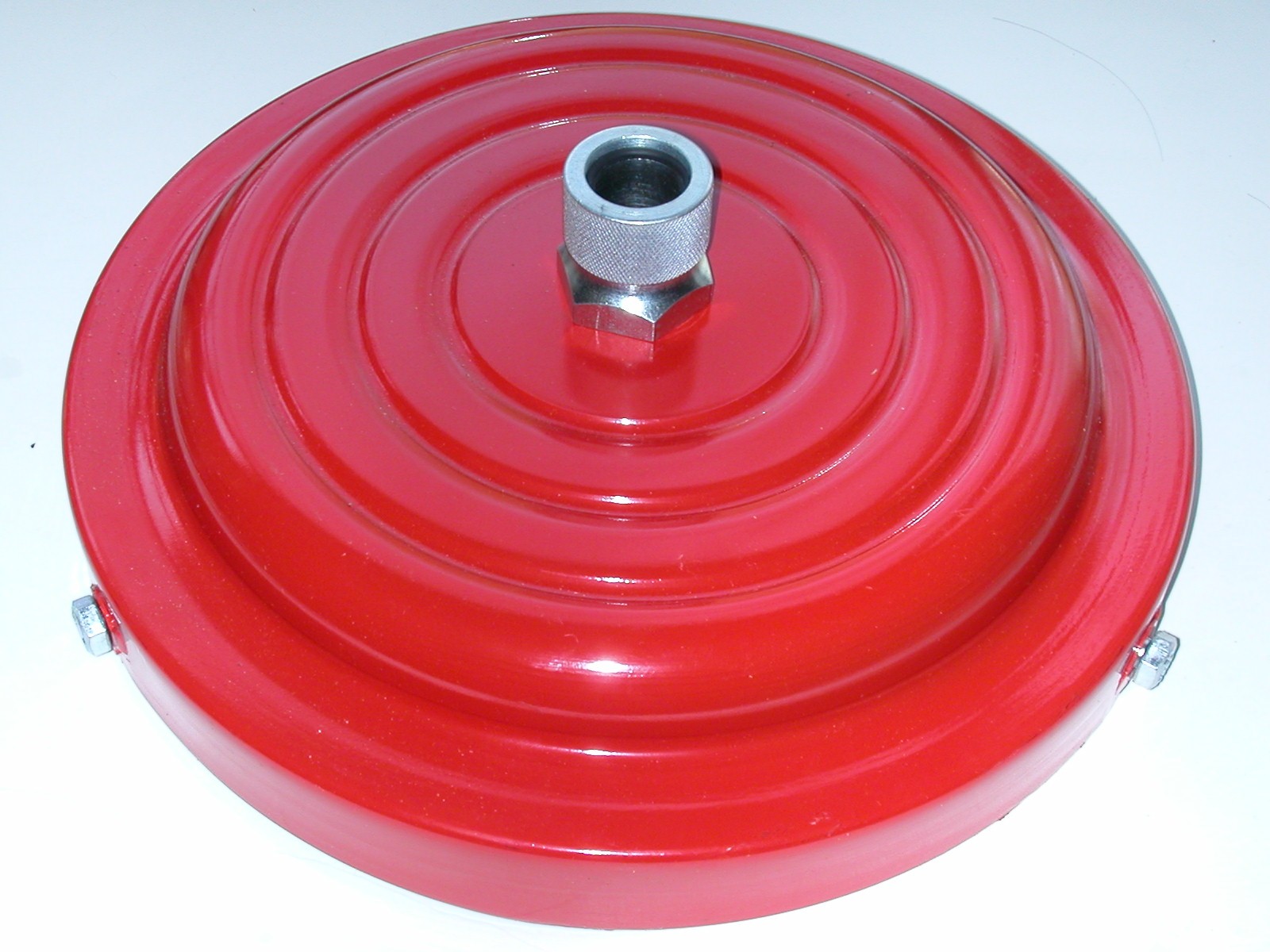

5: 91144CP Knurl and Coupler adheres pump to cover for quick connections and disconnections. Coupler can be mounted in either direction to give additional depth for a deeper pail. Photos show Reversible Height Adjuster.
5: For use with all Air Operated High Pressure 35LB (15.8KG) Grease Pumps and all Oil Pumps
6: Finished in Bright Red both sides.
7: Application: Installed Lube Systems with Standard 35LB (5 Gallon) (15.8KG) Grease Pails
8: BOX Weight: 5LB(2.27KG)
9: BOX Dimensions: 13" X 13" X 3" (33CM X 33CM X 7.6CM)
11: Download PDF File on LT91144M.
For Additional Information or Technical Information, send us an email from this web page at the address below. Please specify the Model Number. Please include your name, address, city, state, zip, Telephone Number and Fax Number in the email and we will send you the requested Information.
