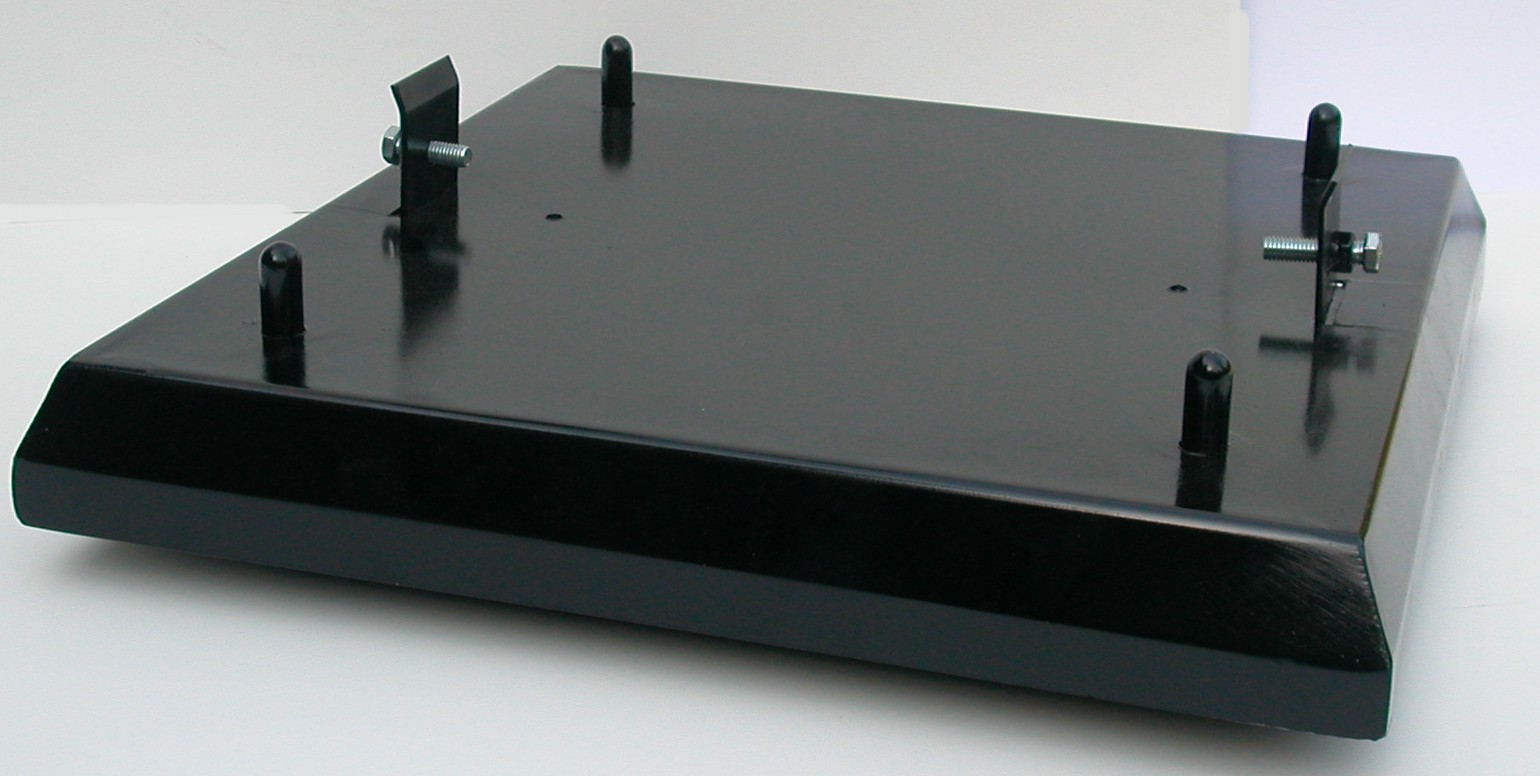

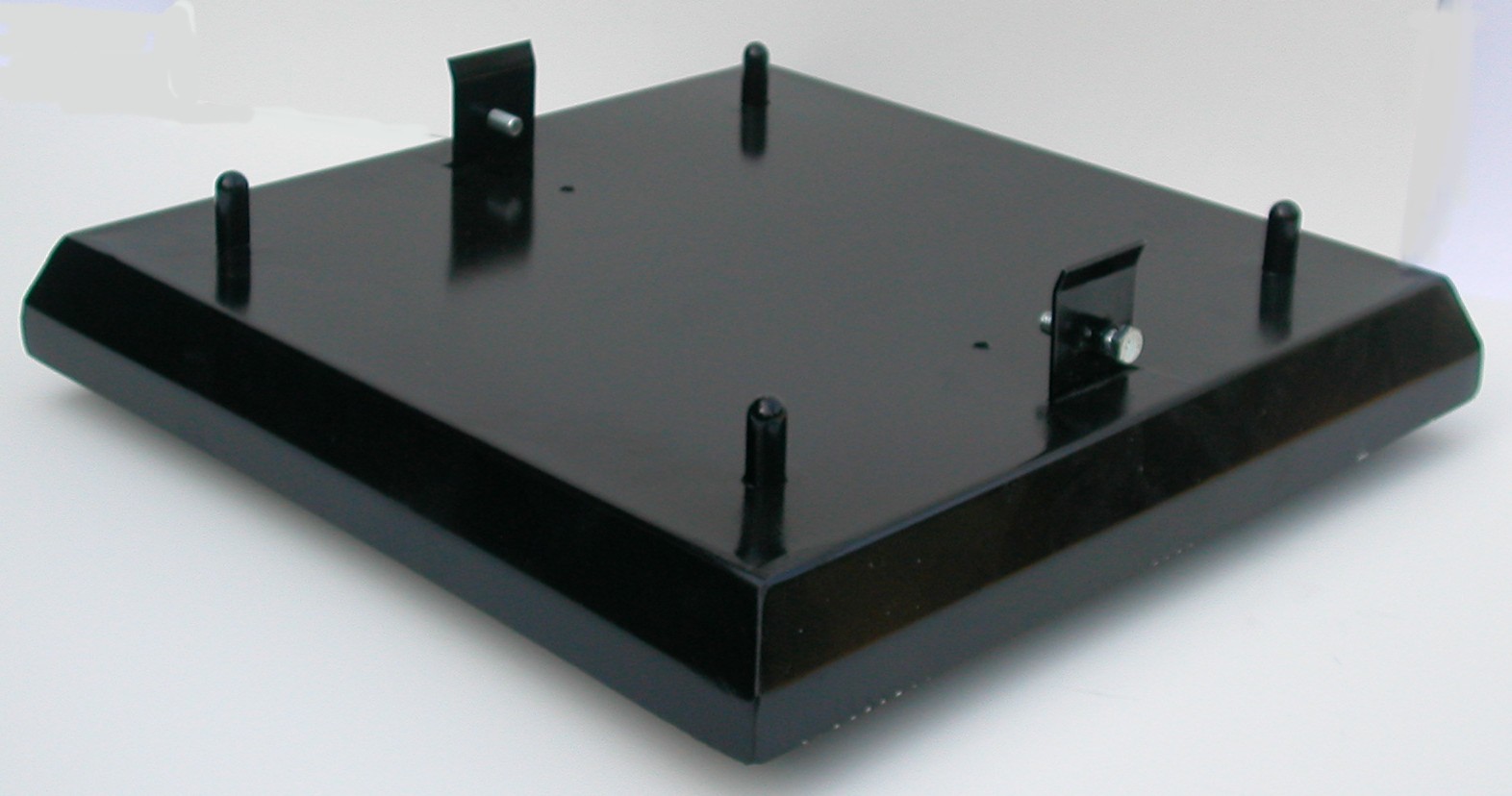

|ROLL-A-AROUND BASE WITH CASTERS
1: Roll-A-Around Base with four (4) Casters (2-1/2"(6.35CM)x 3/4"(1.91CM) Heavy Duty Rubber Casters) for the 120LB Drum (16 Gallon)(54.4KG) Pump and LT917ME Pump or equivalent.
2: Caster Wheels are made of heavy Duty Rubber and measure 2-1/2" (6.35CM) Diameter x 3/4" (1.91CM) Wide
3: The Caster Stem is 3/8" diameter made of steel and either has a retaining clip or is a threaded stem.
4: Caster Frame is made of Rugged Steel and has ball bearings for the swivel control
5: Base Measurement is: 17-3/4" (45.1CM) x 17-3/4" (45.1CM) with a 2-1/2"(6.35CM) skirt around the edge.
6: 2 Postion Indicators on the base hold the drum in the center of the base.
7: 2 1/2" (6.35CM) threaded bolts on either side of the drum lock the drum firmly in place on the base
8: Base is made of 1/8" Plate Steel painted black
9: Application: Garage, Maintainance Facilty and Industry where 120LB (16 gallon) (54.4KG) drums need to be manuvered around.
10: BOX Weight: 10LBS(4.6KG)
11: BOX Dimensions: 19" x 19" x 4" (48.3cm x 48.3cm x 10.2 cm)
12: Download PDF File on LT81319ME.
