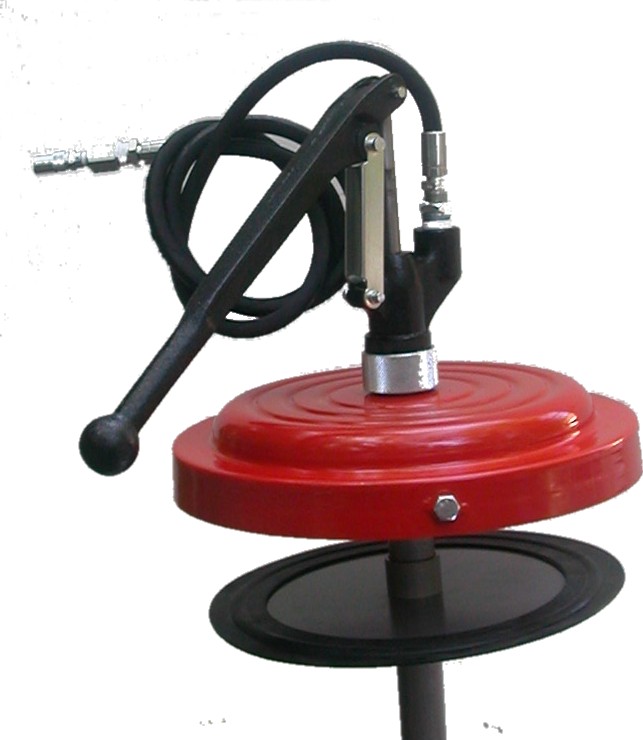

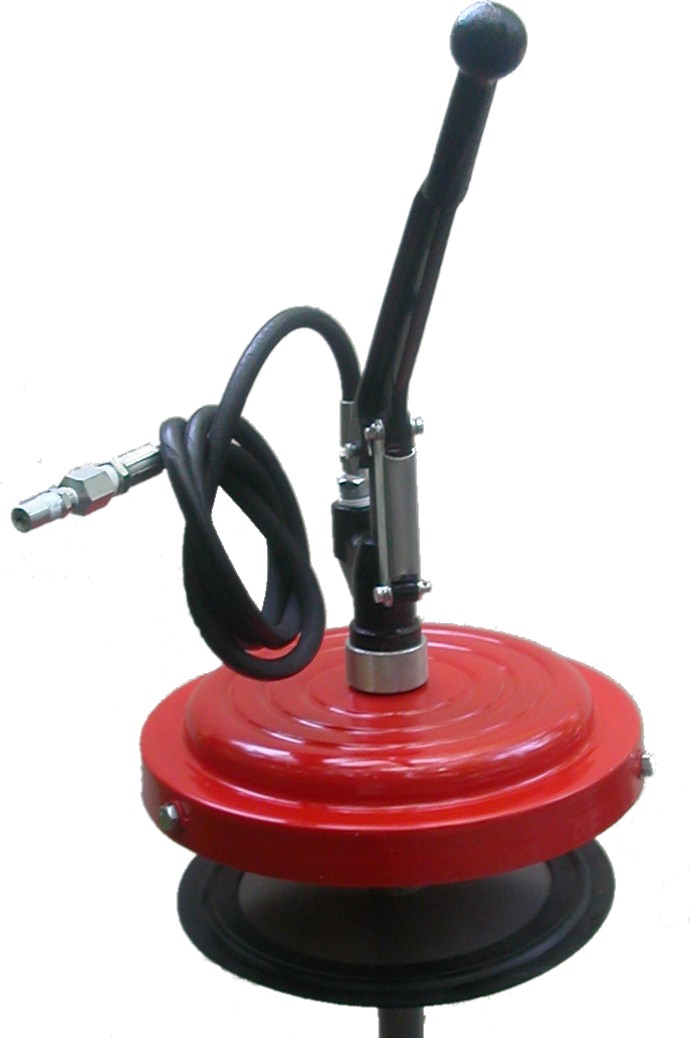

High Pressure Manual Clamp On Grease Bucket Pump (Clamp on Pail Pump) with Cover & Follower Plate (Clamp On unit) 35LB (5 Gallon) Refinery Container.    with Longer Down Tube at 19"

1: Includes High Pressure Manual Grease Pump
2: 5FT(1.52mts) High Pressure Grease Delivery Hose
3: High Pressure Grease Coupler(LT5852ME)
4: Develops a Max Pressure of 3500 LBS(PSI)
5: Lube Outlet: 1/2"(f)NPT

6: Steel Pail Cover Painted in Red with screw downs and Knurl and Coupler assembly to adjust the Height to accomodate Pails from 25-50 LBS capacity. Diameter to fit a standard 35LB (5 Gallon) Refinery Pail; Outer Diameter: 12-5/8"(32.1CM); Inner Diameter: 12-3/8" (31.4CM);
7: Height Adjuster (coupler) for the drum cover to adjust the level of the pump in the 35LB (5 Gallon) pail if needed.  Made for Taller Deeper Buckets with a Max Height of 17" (43.2 cm)
8: Pump Tube Length 19.0"(48.3 cm) & Diameter 1-1/4"(3.175CM) Flared to 1-3/8"(3.5CM); Overall Height: 25-1/2"(64.8cm) FOR DEEPER 35 LB PAILS

9: Follower Plate with rubber outer ring; Outer Diameter: 11-1/8"((28.3CM); Includes a 5/8"(1.59CM) foldable rubber lip around the outer diameter; Inside Diameter to insert Downtube: 1-1/4"(3.175CM); Fits a standard 35LB (5 Gallon) Refinery Container; Conical or Straight Shaped.
10: Solid Cast Pump Handle 13-1/2"(34.3CM) Long x 1"(2.54CM) Diameter for long strokes and pumping leverage. Stroke Length: 3.0"(7.62CM)
11: Output: .28oz/stroke or 11 oz/ min of NLGI#1 @ 80 deg F

12: One year Limited Warranty against Defective Materials, Workmanship and Labor
13: All Pumps are Pressure Tested Statically and Dynamically in NLGI#2 Grease for Output, Pressure, Performance and Quality.
14: Replacement and Repair Parts Available.
15: Other Information: Weight and Dimensions: BOX Weight: 22LBS (9.98KG)
BOX DIMS: Length: 14.0"(35.6cm) X Width:13.0"(33.02cm) X Height: 16"(40.64cm)

16: Price
17: Download PDF File on LT1292XLME
