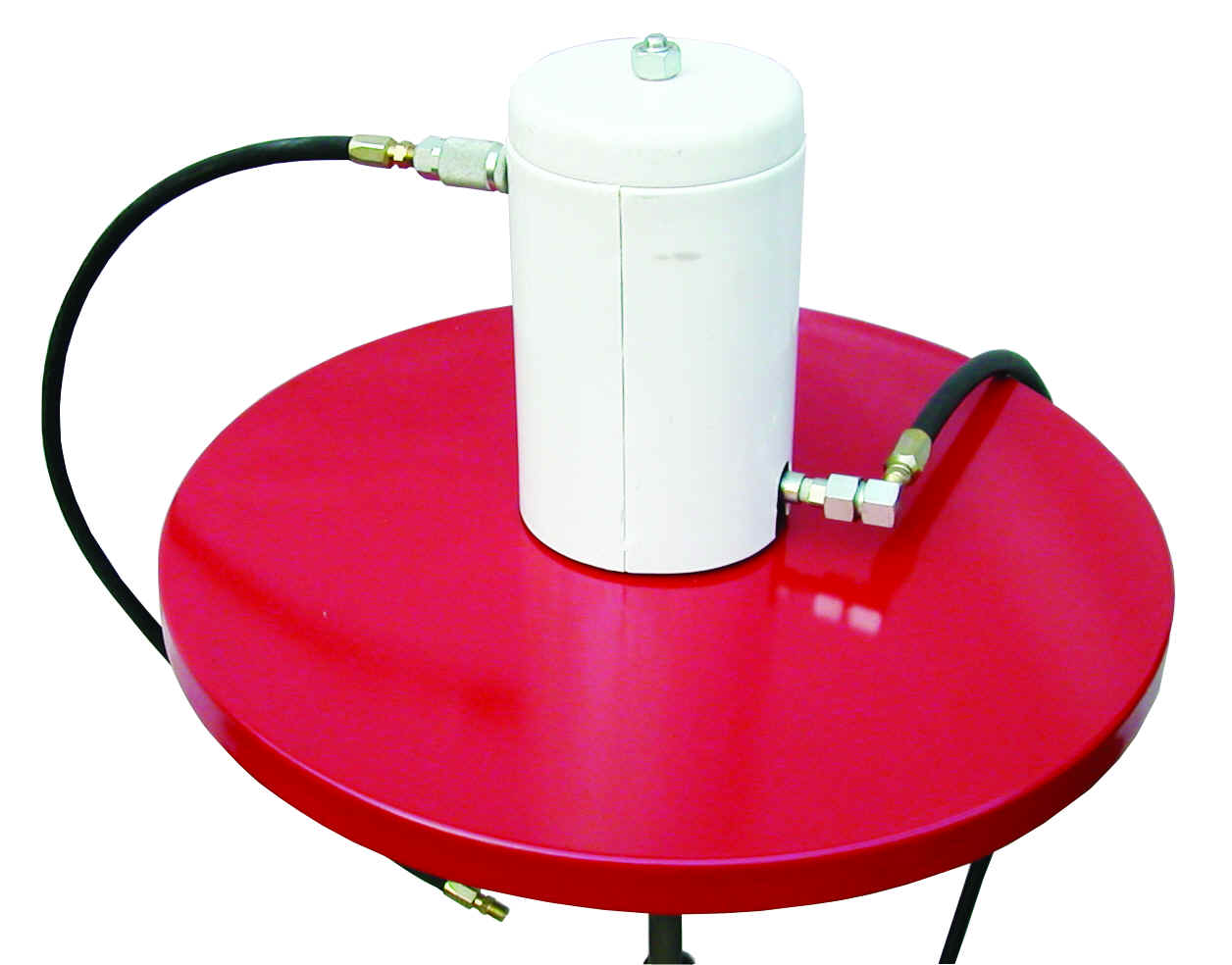

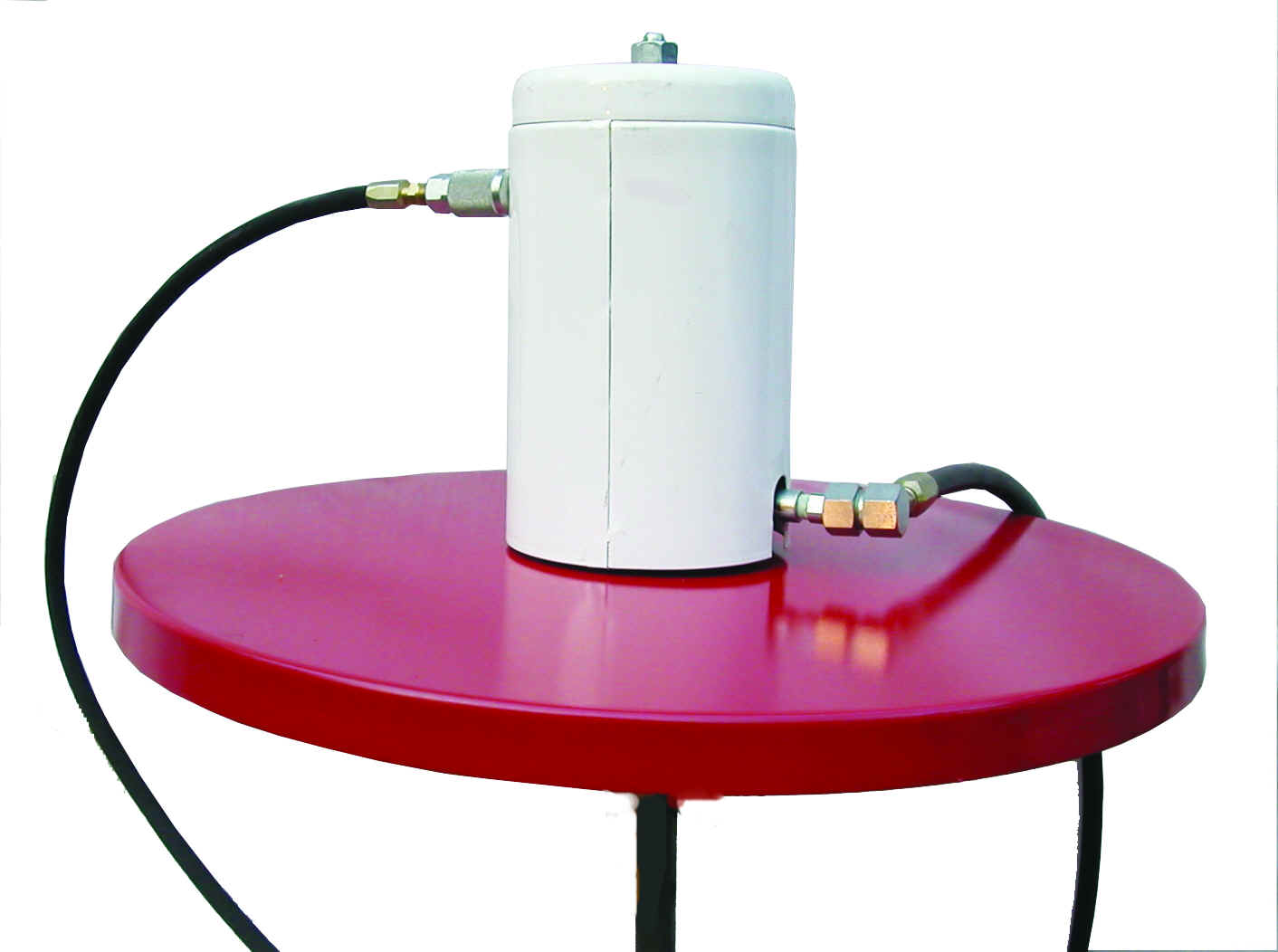

Description: 400LB(55 Gallon) (181.4KG) Drum Grease Pump Assembly 1: Includes: 50:1 Double Acting Heavy Duty High
Pressure Pump (LT82054ME) provides uniform pressure and delivery on the up and down
stroke.
2: Rapid Disconnect Air Coupler (815ME) & Air Nipple (11660ME) 1/8"(M).
3: 3ft (.92mtrs) x 1/4" Air Connecting Hose (LT72036ME).
4: 4ft (1.23mtrs) High Pressure Grease Hose(LT75048ME).
5: High Pressure Volume Union Elbow 1/4"(F) x
1/4"(M) (82202ME).
6: Air Inlet 1/8” NPT (F); Lube Outlet: ¼”
NPT (F).
7: Steel Pump Cover (White)(91369ME) & Air Motor Muffler
(LT2601ME.).
8: Drum Cover for 400LB Drum (Red) (LT81523ME).
9: Pump Specifications: Pump Tube Length 33-15/16"
(86.20CM) made for 400 lb Drum & 1.0” (2.54CM)Diameter; Air Motor Height:
11.0"(27.94CM); Overall Height of Unit: 44-15/16"(114.2CM).
10: The LT82054ME high pressure Grease Pump incorporates a 20 cu. in. air motor design.
11: Output: 80 cu in/minute (45 oz) of Grease at 100PSI
NLGI#2 at 70 Degrees ambient temperature (.35cu in/cycle).
12: New Downtube Packings made of Viton / Teflon for longer
life.
13. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
14: One Year Warranty against Materials, Workmanship and Labor.
15. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
16: Additional Accessories Available: LT82103ME Grease
Strainer for Pump Tube; Follower Plate (LT83366ME) Does not include follower plate; must
order separately.
17: Optional Hoses Available(See Below):
LT75120ME 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m)Thread
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m)Thread
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hosew/ 1/4" NPT(m)Thread
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4" NPT(m)Thread
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m)Thread
18: Complete Repair Kits & Parts Available:.
R83054M: Simple Repair Kit for Grease Pumps LT82054ME.
R83054ME: Complete Repair Kit for Grease Pumps
R83000ME: Air Motor Repair Kit for LT82054ME.
R83001ME: Down Tube Repair Kit for LT82054ME.
19: Other Information : Weights and Dimensions: Weight:
Box #1: 26LB (11.8KG) Box #2: (Cover) 12LBS (5.5KG) Box Dimensions:Box #1(Pump):
Length:8"(20.3CM) X Width:11"(27.9CM) X Height: 49-1/2"(125.8CM); Box
#2:(Drum Cover) 24"(60.9CM) 24"(60.9CM) x 3"(7.62CM).
20: Price
21: Download Complete pdf File on
LT926ME
