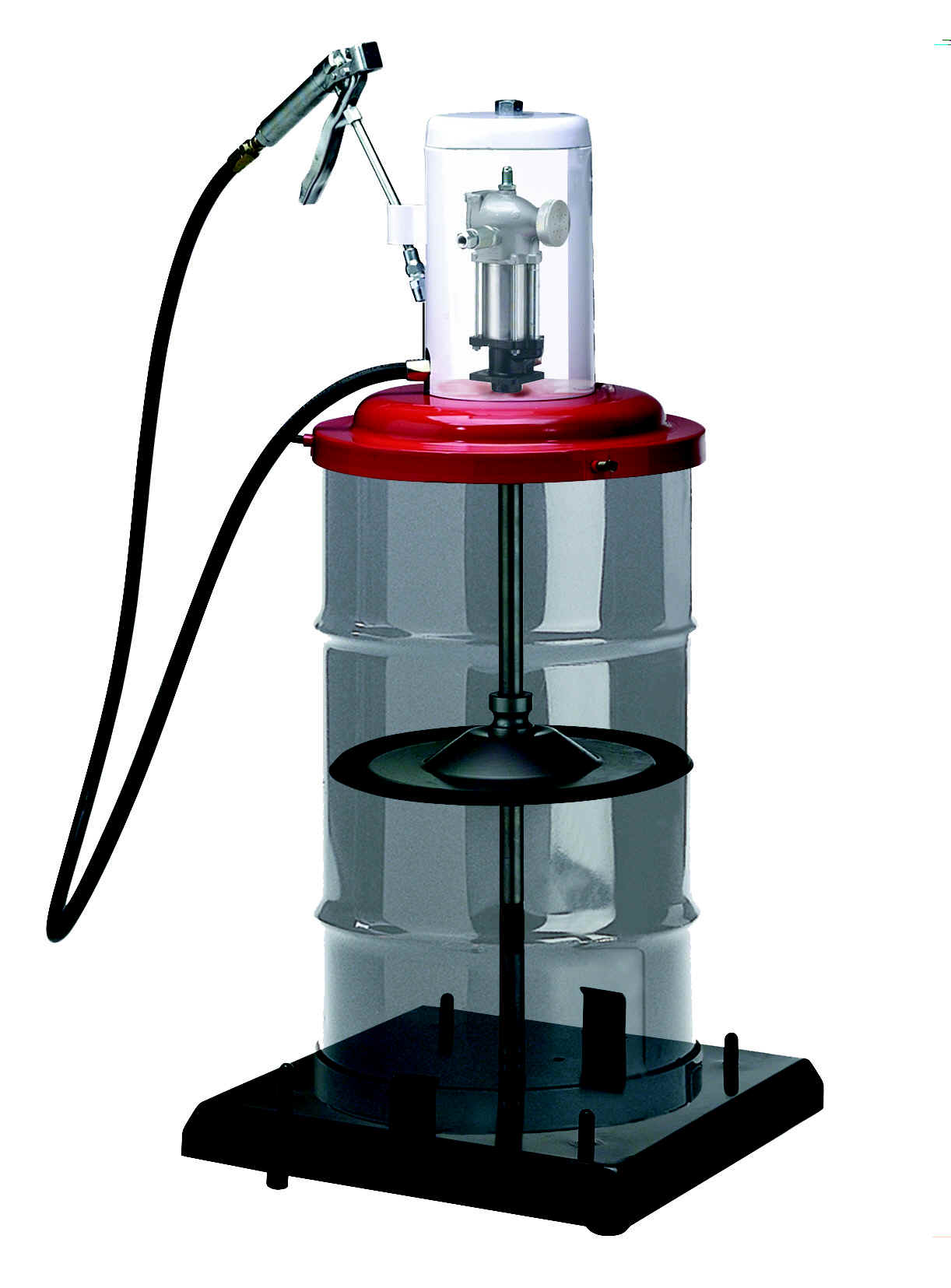

Description: 120LB(16Gal)(54.4KG) Drum
Grease Pump Assembly:
1. Includes 50:1 Double Acting High Pressure Pump(LT82050ME)
provides uniform pressure and delivery on the up and down stroke
2. 6'(1.85mts) High Pressure Grease Delivery Hose(LT75072ME)
3. High Pressure Grease Delivery Control Valve (LT740ME)
4. Rapid Disconnect Coupler(815ME) & Air Nipple (11660ME)
5. Pump Specifications: Pump Tube Length 27-3/8"
(69.5CM) made for 120 lb Drum & 1.0” (2.54CM)Diameter ; Air Motor HT:
11.0"(27.9CM); Overall HT: 38-3/8"(97.47CM)
6. Follower Plate (with outer rubber wiping ring on the drum
and inner rubber wiping ring on the pump tube) DIA 1.0” (LT84780ME) assures postitive
prime and vacuum at low temps (prevents cavitation);
7: Optional Solid Molded Rubber Follower Plate Available
(LT84780M)
8. Air Motor Cover in White (91407ME) & Air Motor Muffler(LT2601ME)
9. Steel Drum Cover with screw downs for 120 LB Drum(45733ME)
Cover Diameter: 15-1/16"(38.42CM) Opening (Downtube Diameter Opening
2-1/4"(5.72CM)) w/ 4 mounting holes to attach base of pump to the cover.
10. Steel Roll-a-Around Base with 4 Heavy Duty Rubber Swivel
Casters (2-1/2"(5.72CM) x 3/4"(1.91CM) for easy manuverability(LT81319ME)
11. Steel Drum Not Included.
12. These high pressure Grease Pumps incorporate a 20 cu. in. air motor design.
13. Output: 80 cu in/minute (45 oz) of Grease at 100PSI
NLGI#2 at 70 Degrees ambient temperature (.35 cu in/cycle)
14. Air Inlet 1/8” NPT (f); Lube Outlet: ¼” NPT (f)
15: New Downtube Packings made of Viton / Teflon for longer
life
16. Maximum Air Pressure: 150PSI; Recomended: 80-100PSI;
Maximum Grease Pressure: 7500PSI; Recomended: 5000 PSI; Note: Pump life reduces
considerably if operating above the recommended air pressure.
17. One Year Warranty against Defective Materials, Workmanship and
Labor
18. All Pumps are Pressure Tested Statically and Dynamically in
NLGI#2 Grease at the Factory for Output, Pressure, Performance and Quality.
19: Additional Accessories Available: LT82103ME Grease
Strainer for Pump Tube; 5253ME “Z” Swivel for the Control Valve; LT66645ME
Locking Swivel 1/4"(m) x 1/4"(f)
20: Optional Hoses Available(See Below): HP (High
Pressure)
LT75120ME: 10ft(3.04mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75240ME 20ft (6.09 mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75360ME 30ft ((9.14mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75480ME 40ft (12.2mtrs)X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
LT75600ME 50ft (15.2mtrs) X ¼” HP Grease Hose w/ 1/4"NPT(m) couplings
21: Complete Repair Kits &
Parts Available(See Below):
R83054M: Simple Repair Kit for Grease Pumps LT82050ME
R83054ME: Complex Repair Kit for Grease Pumps LT82050ME
R83000ME: Air Motor Repair Kit for LT82050ME
R83001ME: Down Tube Repair Kit for LT82050ME
22: Price
23: Download pdf file on LT917ME
