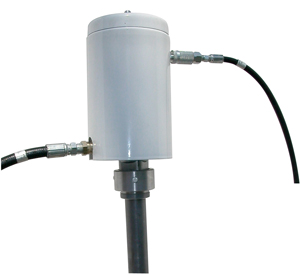

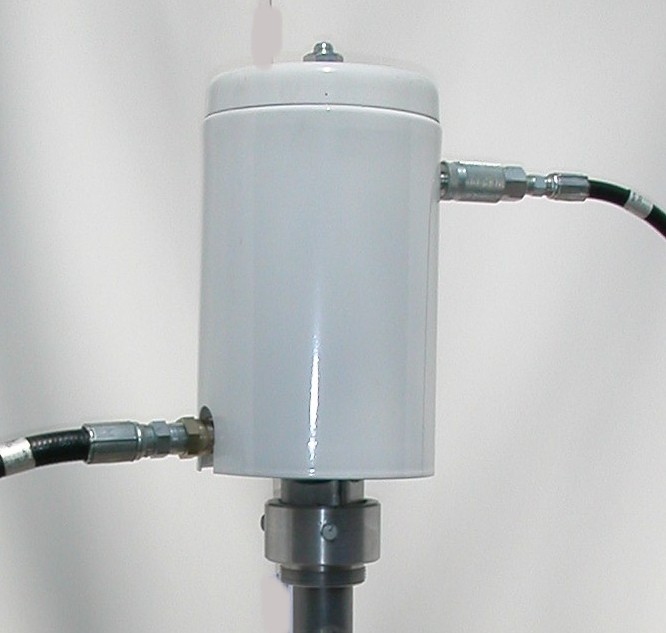

55 Gallon(206LTR) Drum (Barrel) Pump Assembly for Oil:
1: Includes 3:1 Double Acting High Pressure Pump(LT82133ME)
2: 4ft(1.23mts)x 1/2" Low Pressure Oil Connection Hose
3: Rapid Disconnect Coupler(815ME); Air Nipple(11660ME)
4: Muffler(LT2601ME)
5: 3ft(.92mtr) Air Connection Hose

6: Threaded Bung Adapter (40045ME) for installation on a Drum
7: Volume Union Oil Swivel 1/2"(f) x 1/2"(m) (925ME) and Reducing Bushing 3/4"NPT(m) x 1/2"NPT(m);
8: Air Inlet: 1/8"NPT(f); Air Motor Cover(91407ME).
9: Lubrication Outlet: 3/4"NPT(f)(1.91CM); With Union Swivel 1/2".
10: Pump Specifications: Pump Tube Diameter: 1-5/8"(4.13CM); Pump Tube Length 36-1/8" (91.76CM) made for a standard 55 Gallon(206LTR) Drum; Air Motor Height: 11.0"(27.94cm); Overall Height: 47-1/8"(119.7CM).

11: These Low Pressure Oil Pumps incorporate a 20 cu. in. air motor design.
12: Output: 3 Gallons/minute (11.31LTRS/MIN)(Free Delivery)
13: Maximum Air Pressure: 150PSI; Recomended Air Pressure: 80-100PSI; Maximum Oil Pressure: 450PSI;  Recomended Oil Pressure: 300PSI;  Note: The pump life reduces considerably if operating above the recomended air pressure.
14: ONE Year Warranty against Materials, Workmanship and Labor.
15: All Oil Pumps are tested Statically and Dynamically in SAE 30 Motor Oil at the Factory for Output, Pressure, Performance and Quality.
16: Application: Installed Lube Systems; Lube Trucks; Single Service with Extension Hose and Control Valve. Made for connection in an Installed Lube System to supply Reels or as a Stand Alone Unit with a control Valve and longer hose.

17: Additional Accessories Available: LT82956ME: Oil Strainer for Pump Tube;  LT780ME Gear Oil Control Valve 1/2" NPT(f); Includes:82067ME Shut-Off Valve with built-in Swivel and 82070ME Non-Drip Nozzle Extension. Maximum Operating Pressure 1000PSI.
LT775ME: HD Volume Oil Control Valve 1/2" NPT(f); Includes 82906ME Shut-Off Valve and 82932 Rigid Extension Nozzle; Maximum Operating Pressure 1000PSI.
18: Complete Repair Kits Available:
LT83002ME: Simple Repair Kit for Oil Pumps LT424ME;
LT83000ME: Air Motor Repair Kit for LT424ME; LT82133ME
19: Other Information: Weight and Dimensions: BOX Weight: 30LBS (13.61KG) BOX DIM: Length: 49.5"(125.73cm) X Width:11"(27.9cm)XHeight: 8.5"(21.5cm)

20: Price.
21: Download LT424ME PDF file.
