|Grease Drum Cover 120LB (16Gallon) (54.5KG) (60

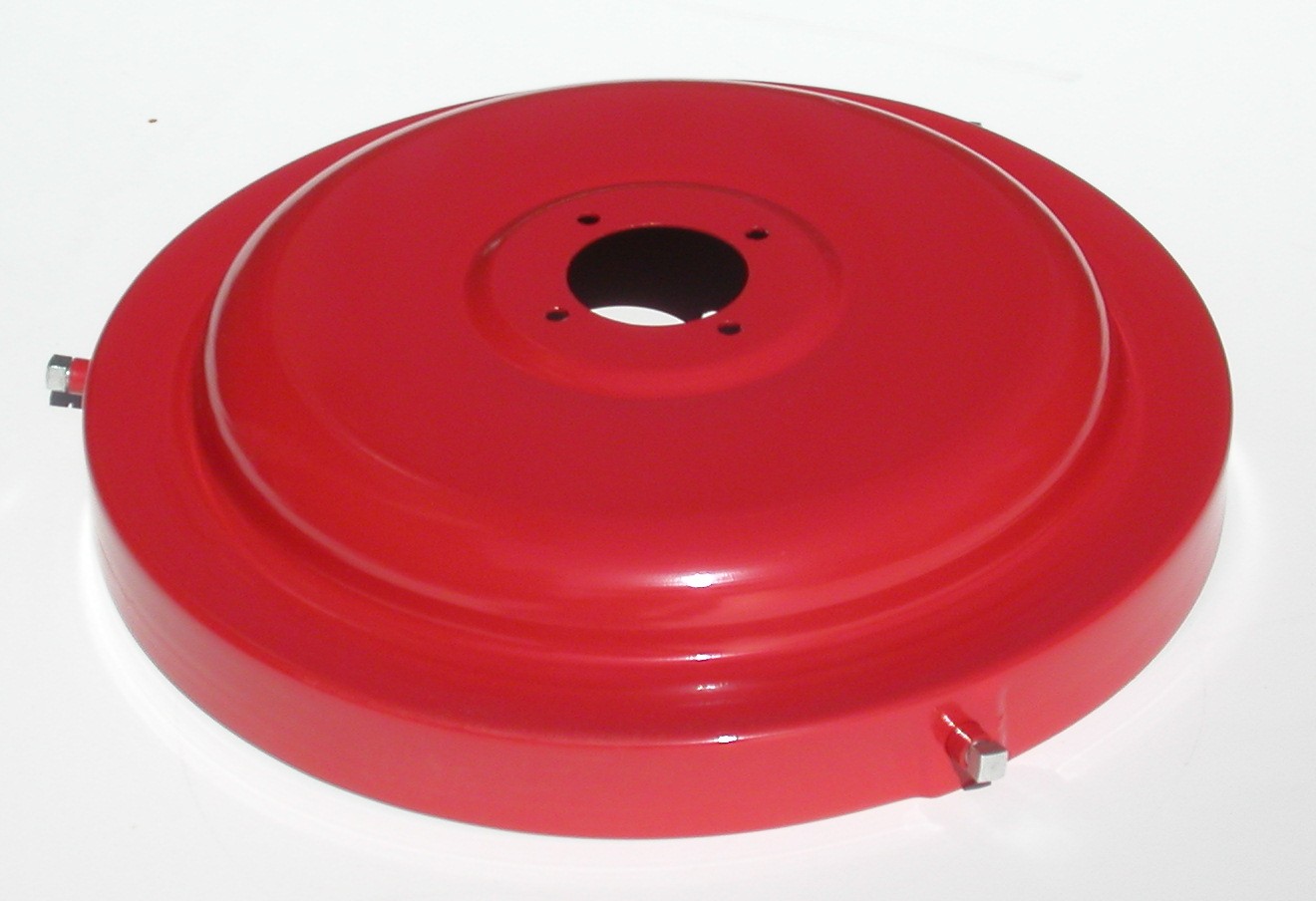

1: 120lb Grease Drum Cover w/ mounting holes for use with 120LB Drum Pumps and LT82050ME Pump; Consists of 4 mounting holes for bolts to adhere cover to base of pump.
2: Drum Cover Dimensions:
Outside Cover Diameter: 15-1/16"(38.3CM);
Inside Cover Diameter: 14-7/8"(37.8CM);
Height of Cover: 2-7/8"(7.3CM);
Diameter Pump Tube Opening in the Cover: 2-3/8"(6.03CM)
3: 3 Set Screws on the Outer edge to adhere the cover and mounted pump to the drum.
4: Fits a Standard 120LB (16Gallon)(54.4KG) (60 Liter) Industrial Refinery Grease or Oil Drum
5: 4 Top Mounting Screws Holes to Secure the base of the pneumatic pump or equivalent to the Cover.
6: For use with all Air Operated High Pressure 120LB 54.4KG) Grease Pumps & all Oil Pumps that fit the opening & mounting requirements
7: Finished in Bright Red both sides.
8: Application: Installed Lube Systems with Standard 120LB(16 Gallon) (54.4KG) Grease Drums
9: BOX Weight: 7LBS(3.2KG)
10: BOX Dimensions: 17" x 17" x 6" (43.2cm x 43.2cm x 15.2cm)
12: Download PDF File on LT45733ME.
